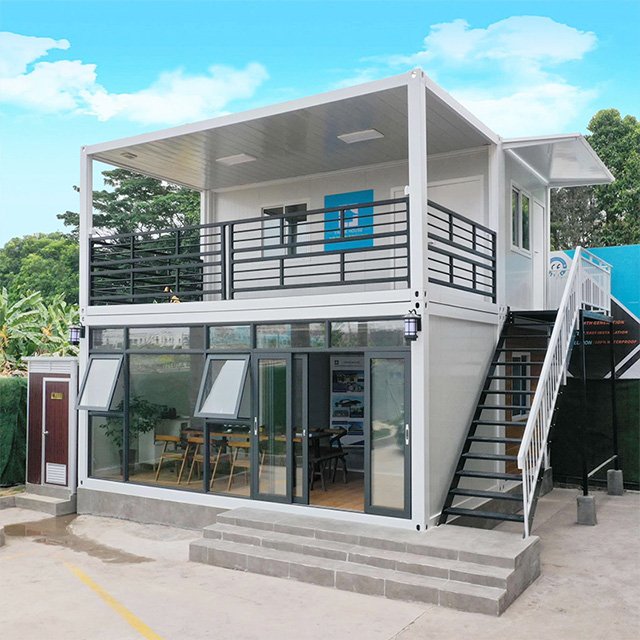

Flat Pack Container Homes employ a modular design, with standardized dimensions for length, width, and height, facilitating mass production and customization.
Installation is swift and straightforward, often requiring only a few workers to complete within a short timeframe.
| Product specifications | External dimension (mm) | 5800 *2480 *2560 |
| Internal dimension (mm) | 5640*2320*2400 | |
| Folding state (mm) | 5800 *2480 *400 | |
| Total mass (kg) | 1000~1300 Including doors and Windows and simple indoor electrical switch socket [1*40HQ It holds 10 sets] | |
| Main body frame | Top frame | Top main beam: Rectangular square tube60×80×1.3mm |
| Top bearing bottom: Rectangular square tube40×40×1.3mm | ||
| Internal ceiling: Color steel veneerV930*0.25㎜ | ||
| Insulating glass wool: Glass wool roll 50mm (unit weight 16kg) | ||
| External roof panel: Galvanized sheet0.5mm | ||
| Protective coating for integral frame: Electrostatic spray/high gloss | ||
| Hanging head: 155*110*（6mm) | ||
| Bottom frame | Bottom main beam: Rectangular square tube 60×140×1.3mm | |
| Bottom bearing: Rectangular square tube 40×40×1.3mm | ||
| Front and rear main beams: Rectangular square tube60×80×1.3mm | ||
| Stand column | Side wall frame: Rectangular square tube40×60×1.3mm | |
| Galvanized buckle groove: 50mm | ||
| Fold hinge: Galvanized hinge 13mm | ||
| Floor | Floor board | Fireproof glass magnesium floor18mm |
| Door | High grade steel door | High-quality security door（Warm white）930mm*1970mm |
| Window | The anti-theft window | 930*930Plastic steel anti-theft integrated window、Glass thickness4mm（Warm white） |
| Simple electric distribution | Simple electric distribution | Electrical wiring，Install in strict accordance with moisture-proof specifications，All electricalAll electrical products shall. |
| Comply with ce certification. Connect the circuit according to the circuit engineering specification，indoor: coil in4²National. | ||
| Standard flexible copper wire, 20 Acircuit breaker 1, Socket incoming line 2.5², three-hole single socket3pcs，2 lamps. | ||
| Wallboard | Model | 50mm Composite plate0.23mm+Basalt rock wool(unit weight50kg）+0.23mm |
| Optional Accessories | Optional Accessories | Furniture, sanitary, kitchen, A/C, electrical appliance for accomodation, office, dormitory, toliet, kitchen, bathroom, shower,steel roof, cadding panels, decorative material, etc. |
| Load bearing/level | Roof bearing capacity | ≧50kg/m² |
| Aisle bearing capacity | ≧200kg/m² | |
| Floor load bearing | ≧150kg/m² | |
| Wall side pressure | ≧80kg/m² | |
| Wall deformation coefficient | ≦300kg/m² | |
| Fire protection level | Class A | |
| Seismic grade | Level 10 | |
| Wind resistance rating | Level 11 |
1. Who are we?
We are based in Shandong, China, start from 2013,sell to Mid East(30.00%),Southeast Asia(20.00%),Domestic Market(10.00%),North America(10.00%),South Asia(10.00%),South America(10.00%),Central America(5.00%),Africa(5.00%). There are total about 11-50 people in our office.
2. What is your package?
Container house is in flat pack. Other houses will be loaded into shipping containers(main structure and panels in bulk, door/ceiling/floor tiles/furniture in cartons, sanitary/electrical/plumbing/hardware/fittings/tools in wooden case ).
3. How about your delivery time?
Normally, the delivery time is as follows: Prefab house: 20-25days, Container house: 15-20days, Steel structure: 25-30days, Villa: 30-35days.
4. Can you customize this product?
We can optimize the budget production according to your needs and drawings.
5. How can iplace an order?
Firstly we need your layout or hand-made drawing, Secondly we design for you and confirm the quantity and design, Thirdly we sign contract and arrange production. Finally we delivery goods and arrange shipping.
6. Why should you buy from us not from other suppliers?
As one of the biggest stage truss factory in China for 8 years, We can supply high quality
performance products, such as: aluminum alloy light frame, truss frame ,aluminum frame, flexible stage ,rack, sub-frame ,air box and other performances .
7. What services can we provide?
Our RD team containuously research the market demands and develop rarious designs to provide you with unique and practical schemes. Our Team possesses the very rich experience in this industry and ready to provide you with very professional supports and advice.
1. Accepted Delivery Terms: FOB,CFR,CIF,EXW；
2. Accepted Payment Currency:USD;RMB；
3. Accepted Payment Type: T/T,L/C,Credit Card.
8. What the value added service do you have?
We have camp/community planning design, indoor and outdoor electrical/plumbing design, communication/fire alarm/security system supply,furniture/ electric appliance offer, etc. we have 80 experienced supervisors who could go to guide the installation at any time.Meanwhile, we have skilled installation team who could finish some turn-key projects.
